Toyota Fortuner

Key Specifications

Specification	Details
Seating Capacity	7 Seater
Fuel Tank Capacity	80 litres
Overall Dimensions	479.5 cm × 185.5 cm × 183.5 cm
Wheelbase	274.5 cm
Minimum Turning Radius	580 cm
Gross Vehicle Weight	2510 kg [2WD] / 2610 kg [2WD] / 2735 kg [4WD]

Engine & Powertrain

Specification	Petrol [MT / AT]	Diesel [MT / AT]	Diesel-neoDrive 48V [AT]
Fuel Type	Petrol	Diesel	Diesel-neoDrive 48V
Displacement	2694 cm³	2755 cm³	2755 cm³
Valve Train	Double Overhead Camshaft [DOHC], 16-Valve	Double Overhead Camshaft [DOHC], 16-Valve	Double Overhead Camshaft [DOHC], 16-Valve
Charging System	Variable Nozzle Turbocharger with Intercooler	Variable Nozzle Turbocharger with Intercooler	Variable Nozzle Turbocharger with Intercooler
Cylinders / Layout	4-Cylinder, In-Line	4-Cylinder, In-Line	4-Cylinder, In-Line
Max. Output	122 kW [166 PS] @ 87 s⁻¹	150 kW [204 PS] (MT) @ 57 s⁻¹ 150 kW [204 PS] (AT) @ 50 - 57 s⁻¹	150 kW [204 PS] (AT) @ 50 - 57 s⁻¹
Battery	-	-	48 V
Motor Power	-	-	8.5 kW
Max. Torque	245 Nm @ 67 s⁻¹	420 Nm (MT) @ 23 - 57 s⁻¹ 500 Nm (AT) @ 27 - 47 s⁻¹	500 Nm (AT) @ 27 - 47 s⁻¹

Transmission & Drive Type

Variant	Transmission	Drive Type
Petrol	5MT / 6AT	2WD
Diesel	6MT with iMT [Intelligent Manual Transmission] / 6AT [Sequential Shift + Paddle Shift + Shiftlock]	2WD / 4WD
Diesel-neoDrive 48V	6AT [Sequential Shift + Paddle Shift + Shiftlock]	4WD

Chassis & Suspension

Specification	Details
Front Suspension	Double Wishbone
Rear Suspension	4-Link With Coil Spring
Brakes	Ventilated Discs, Front & Rear
Stabilizer	Front & Rear
Pitch & Bounce Control	Available
Power Steering	Power Steering with VFC [Variable Flow Control]

Wheels & Tyres

Configuration	Tyre
2WD	265/65 R17 (43.18 cm)
4WD	265/60 R18 (45.72 cm)

Safety & Security

Feature	Availability / Details
VSC	Vehicle Stability Control with BA [Brake Assist]
HAC	Hill Assist Control
TRC	Traction Control System
SRS Airbags	7 Units
Seat Belt Reminder	2nd & 3rd Row Seats
Anti-Theft Alarm	Ultrasonic Sensor and Glass Break Sensor
Front Seats	WIL Concept Seats [Whiplash Injury Lessening]
Child Restraint System	ISOFIX + Tether Anchor on 2nd Row
Front Row Seatbelts	Pre-Tensioner + Force Limiter
ABS	Anti-lock Braking System
Speed Auto Lock	With Emergency Unlock
Body Structure	Impact Absorbing Structure with Pedestrian Protection Support
Emergency Brake Signal	Available

Exterior Features

Feature	Details
Headlamps	Dusk Sensing LED Headlamps with LED Line-Guide
Rear Lamps	New Design Split LED Rear Combination Lamps
Front DRL	New Design Front DRL with Integrated Turn Indicators
Front Bumper	New Design Front Bumper with Skid Plate
Grille	Bold New Trapezoid Shaped Grille with Chrome Highlights
Entry & Start	SMART Entry and Push Start/Stop
Illuminated Entry	Puddle Lamps Under Outside Mirror
Door Handles	Chrome Plated
Window Beltline	Chrome Plated
Alloy Wheels	Machine Finish Alloy Wheels [2WD]; New Design Super Chrome Alloy Wheels [4WD]
Fog Lamps	LED Front Fog Lamp and Rear Fog Lamp
Power Back Door	Fully Automatic Power Back Door with Height Adjust Memory and Jam Protection
Side Mirrors	Electrically Adjustable, Retractable Side Mirrors with Side Turn Indicators
Aero-Stabilising Fins	On ORVM Base and Rear Combination Lamps

Interior Features, Comfort & Convenience

Feature	Details

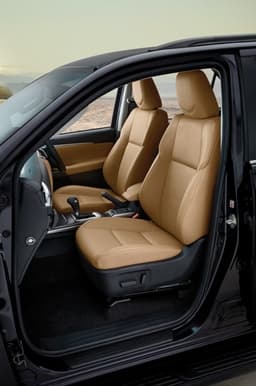

Seats	Leather Seats
Front Seats	Ventilated Front Seats with perforation
Seat Colour Options	Chamois and Black
Interior	Cabin Wrapped in Soft Upholstery, Metallic Accents and Woodgrain-Patterned Ornamentation
Glass	Heat Rejection Glass
Cruise Control	Available
Multi-Information Display	Large TFT Multi-Information Display
Combimeter	New Optitron Cool-Blue Combimeter with Chrome Accents and Illumination Control
Steering Wheel Controls	Audio, MID, Tel, Voice Recognition Switches
Steering Column	Tilt & Telescopic
Climate Control	Dual Zone Automatic Climate Control [Dual A/C]
Inside Rear View Mirror	Electrochromic
Infotainment	8.0 DA Touch Screen Audio with Capacitive Switches
Connectivity	Bluetooth, USB, Android Auto / Apple CarPlay
Audio	6 Speakers / Premium JBL Speakers with 11 Speakers including Subwoofer & Amplifier
Centre Console	Centre Console Box with Soft Armrest
Start & Stop Function	Available
360 Degree Camera	Available
Wireless Charger	Available
Multi-Terrain System	Mud / Sand / Rock / Dirt / Deep Snow
Power Windows	All Windows Auto Up/Down with Jam Protection
Upper Glovebox	Cooled
Power Back Door Access	SMART Key, Back Door and Driver Control
Driving Modes	ECO / NORMAL / SPORT
Front Seats Adjustment	Power Adjust Driver and Front Passenger Seats
2nd Row	60:40 Split Fold, Slide, Recline and One-Touch Tumble
3rd Row	One-Touch Easy Space-Up with Recline
Park Assist	Back Monitor, Front and Rear Sensors with MID Indication

Off-Road Features

Feature	Details
Frame	Tough Frame with Exceptional Torsional and Bending Rigidity
4WD Range	High [H4] and Low [L4] Range - 4WD Variants
DAC	Downhill Assist Control - 4WD Variants
A-TRC	Active Traction Control
Electronic Drive Control	2WD/4WD Control - 4WD Variants
Approach / Departure Angle	0.51 rad / 0.44 rad
Lockable Differential	4WD Variants

Connected Features

Feature	Details
Emergency Call	SOS, Auto Collision Notification
Vehicle Security	Tow Alert
Remote Check	Odometer, Distance to Empty, Hazard & Head Lamps
Vehicle Health e-Care	Warning Malfunction Indicator, Vehicle Health Report
Smart Watch Connect	Available
Siri Voice Assistant	iOS
Service Booking	Real Time Service Booking Appointment
Additional Features	20+ Additional Features

Exterior Colours

Available Colours
Platinum White Pearl
Super White
Attitude Black
Avant-Garde Bronze
Sparkling Black Silver Metallic
Crystal Shine

Important Notes

Note	Details
Specification Disclaimer	Vehicles pictured and specifications detailed in the brochure may vary between models and equipment. Addition of extra features may change figures in the chart.
Manufacturer	Toyota Kirloskar Motor Pvt. Ltd. reserves the right to alter the details of specifications and equipment without notice.
Colour Disclaimer	Actual colour of the vehicle body and upholstery might differ slightly from the images depicted in the brochure.
Features	Features are grade specific.
Airbags	For more details on the functioning of airbags, refer to the owner's manual.
Leather	Materials used are a mix of Genuine and Synthetic Leather.
360 Degree Camera	Accessories shown are not part of standard fitment from TKM and may be fitted aftersales by a dealership.
BS6	BS6 Phase 2 Compliant.

FAQ

How many people can the Toyota Fortuner seat?

The Toyota Fortuner has a 7-seat configuration.

What engine options are available?

The Fortuner is available with a 2.7-litre petrol engine, a 2.8-litre diesel engine and a 2.8-litre Diesel-neoDrive 48V powertrain.

What is the maximum power of the Fortuner?

The petrol engine produces up to 122 kW (166 PS), while the diesel and Diesel-neoDrive 48V versions produce up to 150 kW (204 PS).

Does the Fortuner have a 4WD option?

Yes. 4WD is available with the diesel and Diesel-neoDrive 48V configurations as specified.

What is the Fortuner's fuel tank capacity?

The Toyota Fortuner has an 80-litre fuel tank.

What are the Fortuner's dimensions?

The Toyota Fortuner measures 479.5 cm in length, 185.5 cm in width and 183.5 cm in height, with a 274.5 cm wheelbase.

What off-road features are available?

The Fortuner offers features including High [H4] and Low [L4] range on 4WD variants, Downhill Assist Control, Active Traction Control, Multi-Terrain System and a lockable differential on 4WD variants.
